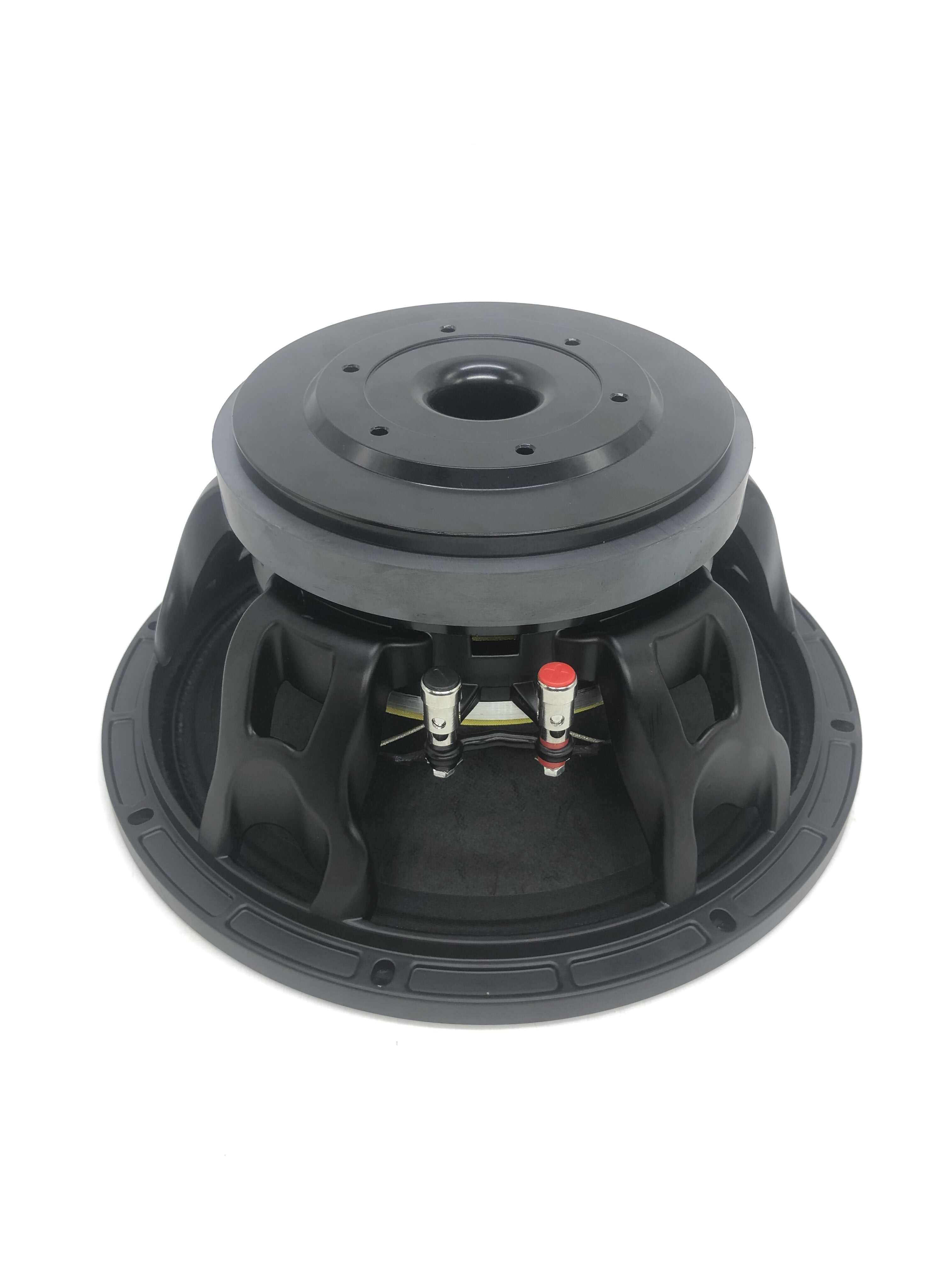

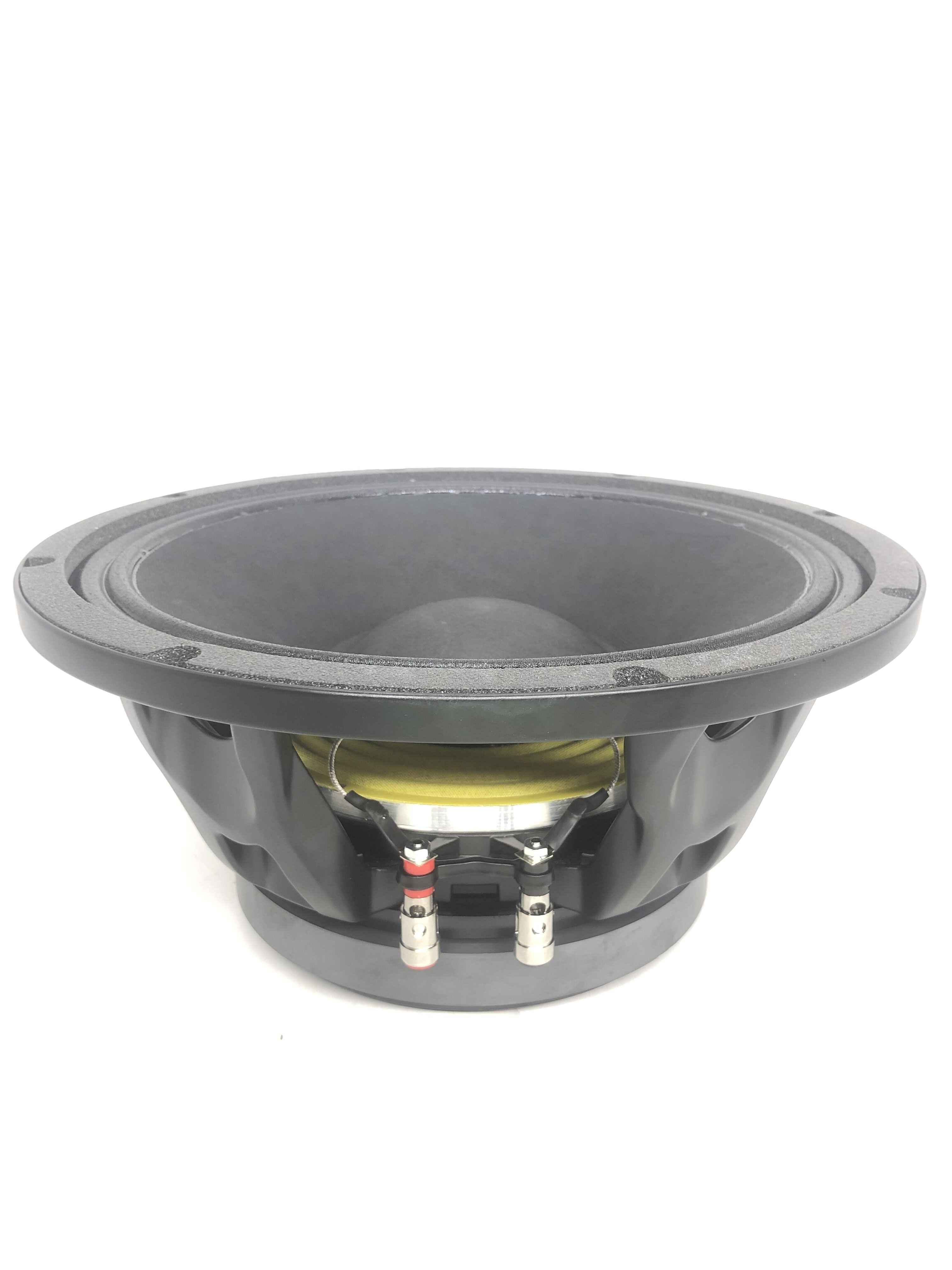

General Specification/±ê³Æ¹æ¸ñ
|
Nominal diameter |
¹«³ÆÖ±¾¶ |
300mm/12inch |
|
The overall diameter |
ÕûÌåÖ±¾¶ |
318mm |
|
Install screw hole diameter |
Âݿװ²×°Ö±¾¶ |
300*8*(¦µ7*¦µ10)mm |
|
Hole diameter |
ÒôÏ俪¿×Ö±¾¶ |
286mm |
|
Magnet diameter |
´ÅÌåÍ⾶ |
¦µ190mm |
|
Voice coil diameter |
ÒôȦֱ¾¶ |
85mm/3.5 inch |
|
Voice coil material |
Ïß²Ä |
Copper |
|
Surround design |
ÕÛ»·Éè¼Æ |
M Type edge |
|
Net weight |
¾»ÖØ |
7.0kg |
|
Shipping box(1pcs) |
°ü×°³ß´ç |
327*327*150 mm |
Technical Parameters/¼¼Êõ²ÎÊý
|

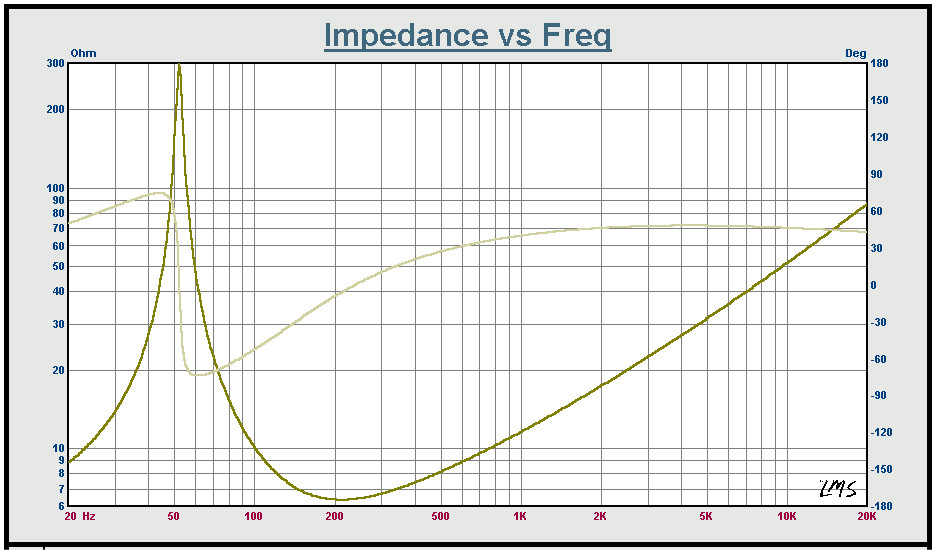

Nominal impedance |
¶î¶¨×迹 |
8¦¸ |
|
Nominal power |
¶î¶¨¹¦ÂÊ |
600W |
|
Program power |
×î´ó¹¦ÂÊ |
1200W |
|
Sensitivity |
ÁéÃô¶È |
97.3dB |
|

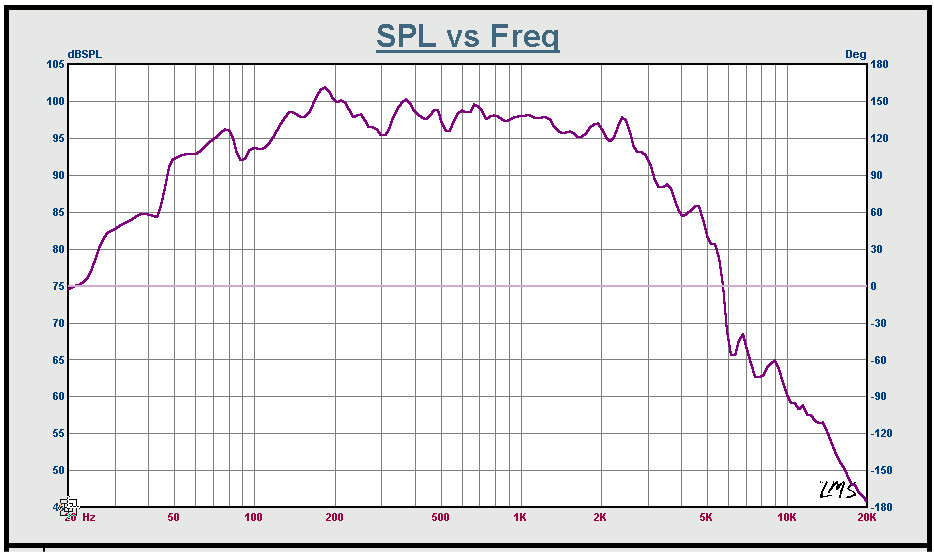

Frequency range |
ƵÂÊ·¶Î§ |
50-2500Hz |
T.S Parameters/T.S ²ÎÊý
|
Fs |
гÕñµãЧÂÊ |
52.236Hz |
|
Re |
Ö±Á÷×迹 |
5.5¦¸ |
|
Qes |
µçÆ·ÖÊÒòÊý |
0.402 |
|
Qms |
»úеƷÖÊÒòÊý |
15.938 |
|
Qts |
×ÜÆ·ÖÊÒòÊý |
0.395 |
|
Vas |
ÓÐЧÈÝ»ý |
58.562m³ |
|
Mms |
Õñ¶¯ÖÊÁ¿ |
61.456g |
|
Bl |
´ÅÁ¦ |
16.607N/A |
|
Cms |
Á¦Ë³ |
151.055Um/n |
