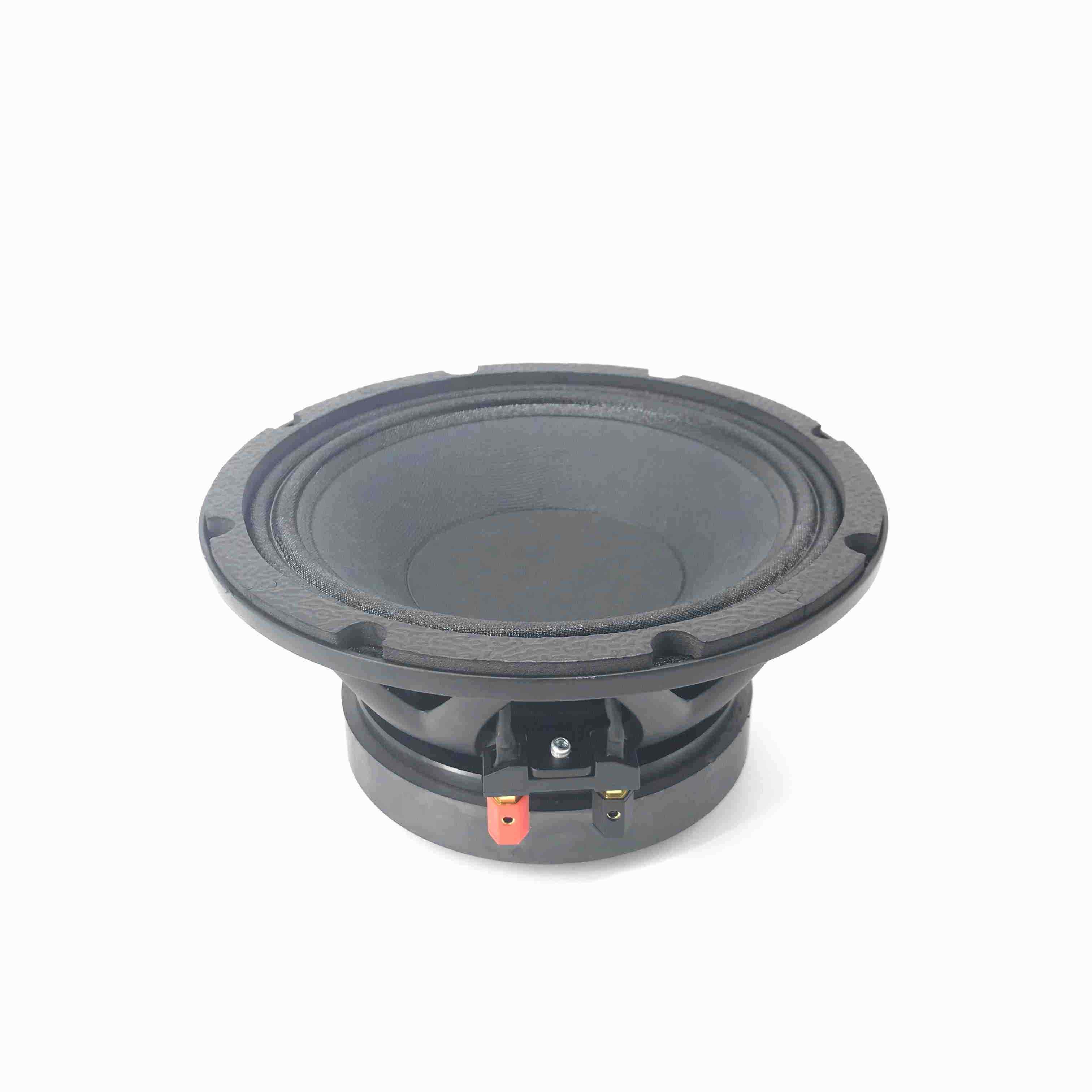

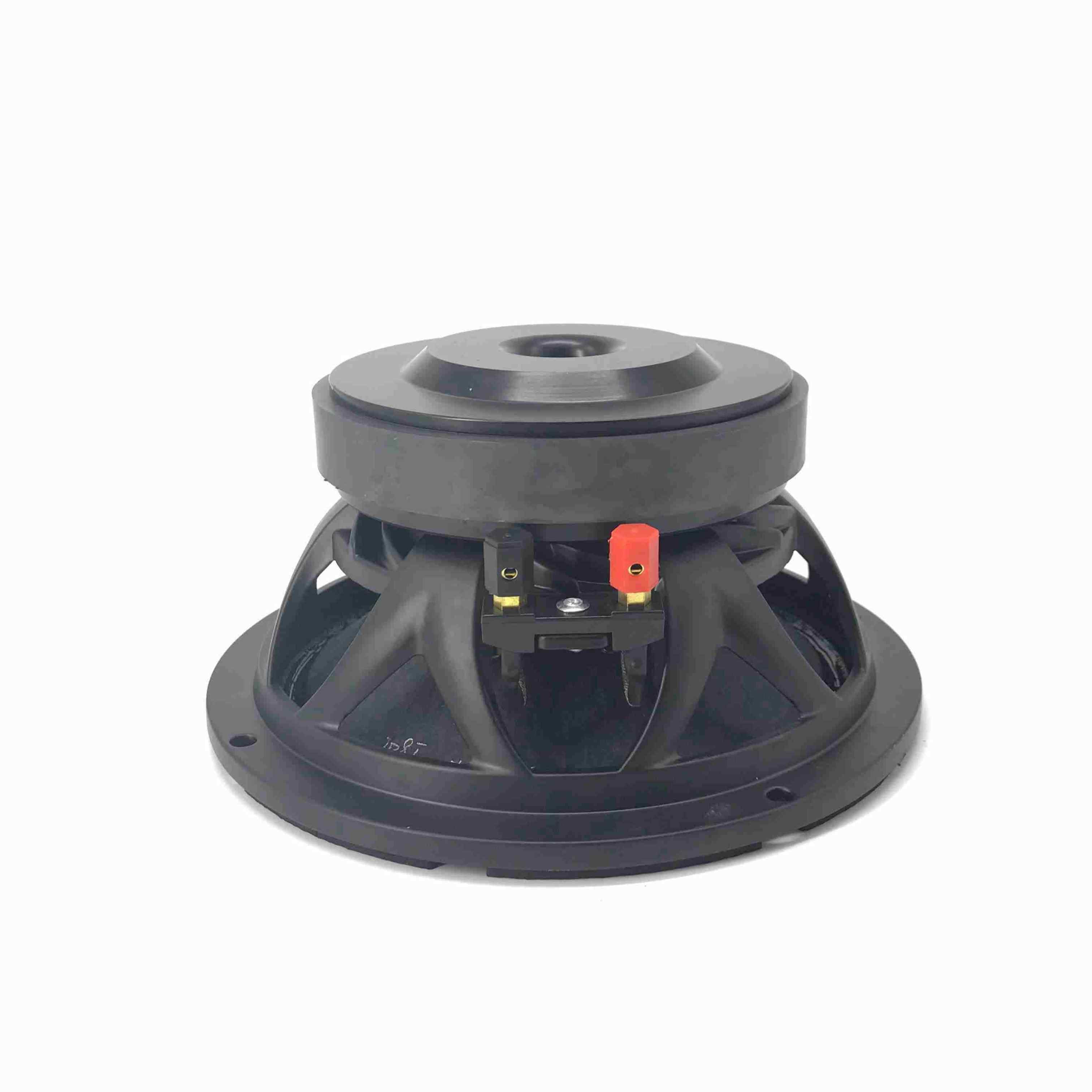

8’’ WOOFER
Model: X8651
General Specification/标称规格
|
Nominal diameter |
公称直径 |
200mm/8 inch |
|
The overall diameter |
整体直径 |
210mm |
|
Install screw hole diameter |
螺孔安装直径 |
196mm |
|
Hole diameter |
音箱开孔直径 |
182mm |
|
Magnet diameter |
磁体外径 |
Φ140mm |
|
Voice coil diameter |
音圈直径 |
65mm/2.5 inch |
|
Voice coil material |
线材 |
Copper/outside |
|
Surround design |
折环设计 |
M Type edge |
|
Net weight |
净重 |
3.4kg |
|
Shipping box(1pcs) |
包装尺寸 |
23*23*12.5cm |
Technical Parameters/技术参数
|

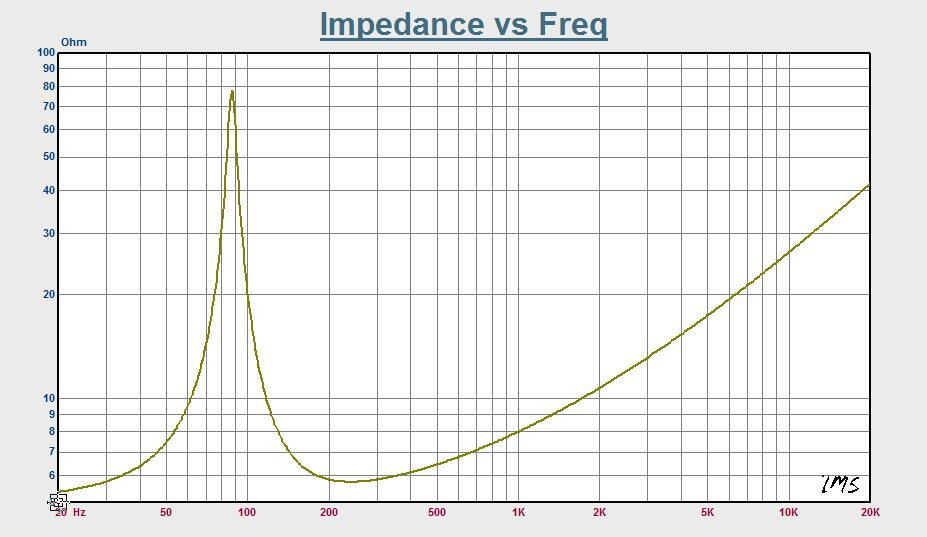

Nominal impedance |
额定阻抗 |
8Ω |
|
Nominal power(Iec) |
额定功率 |
250W |
|
Program power |
最大功率 |
500W |
|

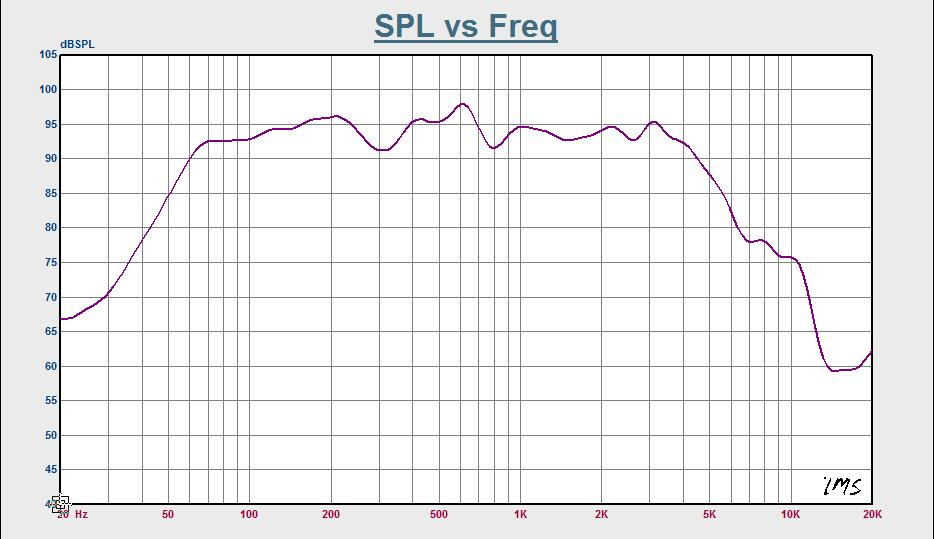

Sensitivity |
灵敏度 |
94dB |
|
Frequency range |
频率范围 |
80-4000Hz |

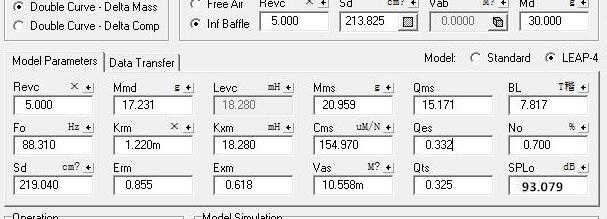

T.S Parameters/T.S 参数
|
Fs |
谐振点效率 |
82.536Hz |
|
Re |
直流阻抗 |
5.0Ω |
|
Qes |
电品质因数 |
0.542 |
|
Qms |
机械品质因数 |
15.112 |
|
Qts |
总品质因数 |
0.325 |
|
Vas |
有效容积 |
10.611m³ |
|
Mms |
振动质量 |
27.497g |
|
Bl |
磁力 |
10.847N/A |
|
Cms |
力顺 |
161.435Um/n |
