General Specification
|
Nominal diameter |
380 mm/15 inch |
|
The overall diameter |
393 mm |
|
Magnet diameter |
130 mm |
|
Depth |
180 mm |
|
Hole diameter |
355 mm |
|
Install screw hole diameter |
Φ372*8*（Φ7*10） |
|
Net weight |
5.70 kg |
|
Shipping box(1pcs) |
402*402*195 mm |
LF
|
Nominal impedance |
8Ω |
|
Frequency range |
40-2300 Hz |
|
Sensitivity |
99.0 DB |
|
Nominal power |
500 W |
|
Program power |
1000 W |
|
Voice coil diameter |
75 mm/3 inch |
|
Voice coil material |
Copper |

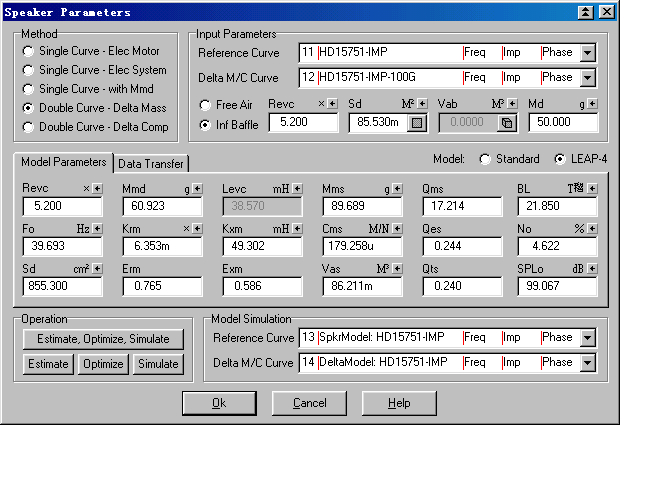

T.S Parameters
|
Fs |
39 Hz |
|
Re |
5.4 Ω |
|
Qes |
0.256 |
|
Qms |
16.798 |
|
Qts |
0.252 |
|
Vas |
86.25 dm³ |
|
Mms |
86.005 g |
|
Sd |
855 cm² |
|
ηo |
4.512 % |
|
Bl |
18.758 T.m |
|
Cms |
180.068 Um/n |
