General Specification
|
Nominal diameter |
380 mm/15 inch |
|
The overall diameter |
393 mm |
|
Magnet diameter |
220 mm |
|
Depth |
173 mm |
|
Hole diameter |
355 mm |
|
Install screw hole diameter |
Φ372*8*（Φ7*10） |
|
Net weight |
9.80 kg |
|
Shipping box(1pcs) |
402*402*195 mm |
LF
|
Nominal impedance |
8Ω |
|
Frequency range |
35-2100 Hz |
|

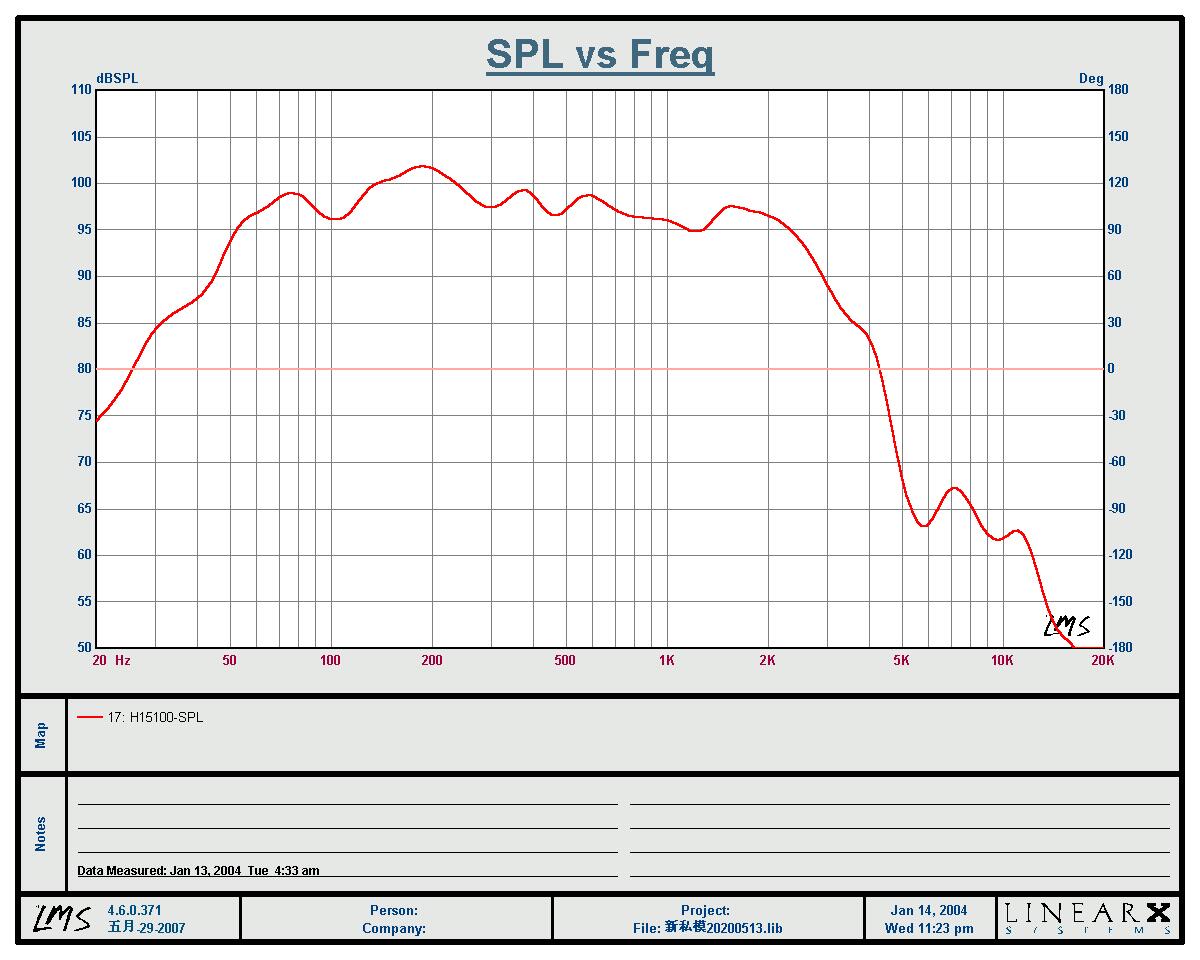

Sensitivity |
97.5 DB |
|
Nominal power |
600 W |
|
Program power |
1200 W |
|
Voice coil diameter |
100 mm/4 inch |
|
Voice coil material |
Copper |

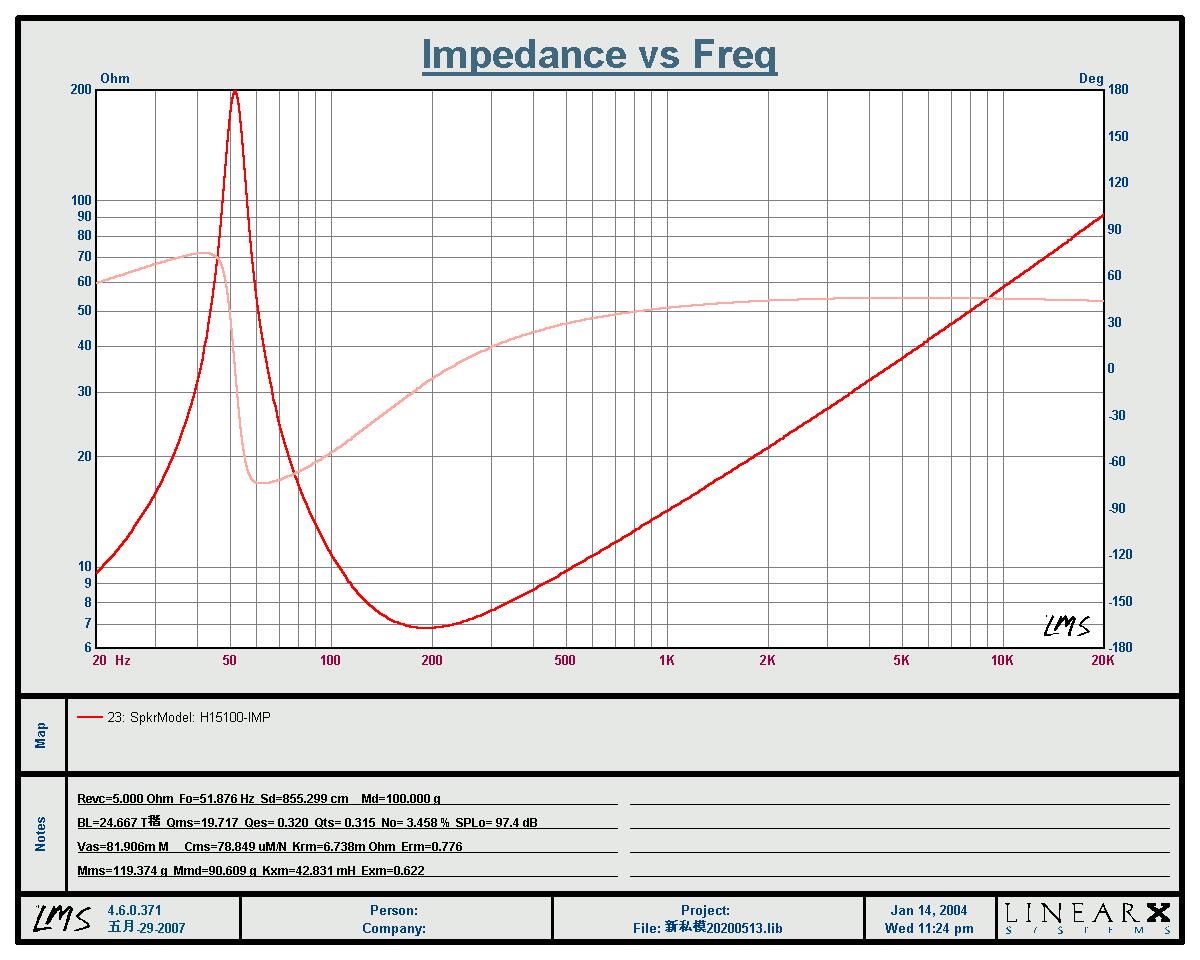

T.S Parameters
|
Fs |
50 Hz |
|
Re |
5.0 Ω |
|
Qes |
0.320 |
|
Qms |
15.171 |
|
Qts |
0.315 |
|
Vas |
81.05 dm³ |
|
Mms |
120.525 g |
|
Sd |
855 cm² |
|
ηo |
3.458 % |
|
Bl |
24.668 T.m |
|
Cms |
78.768 Um/n |
