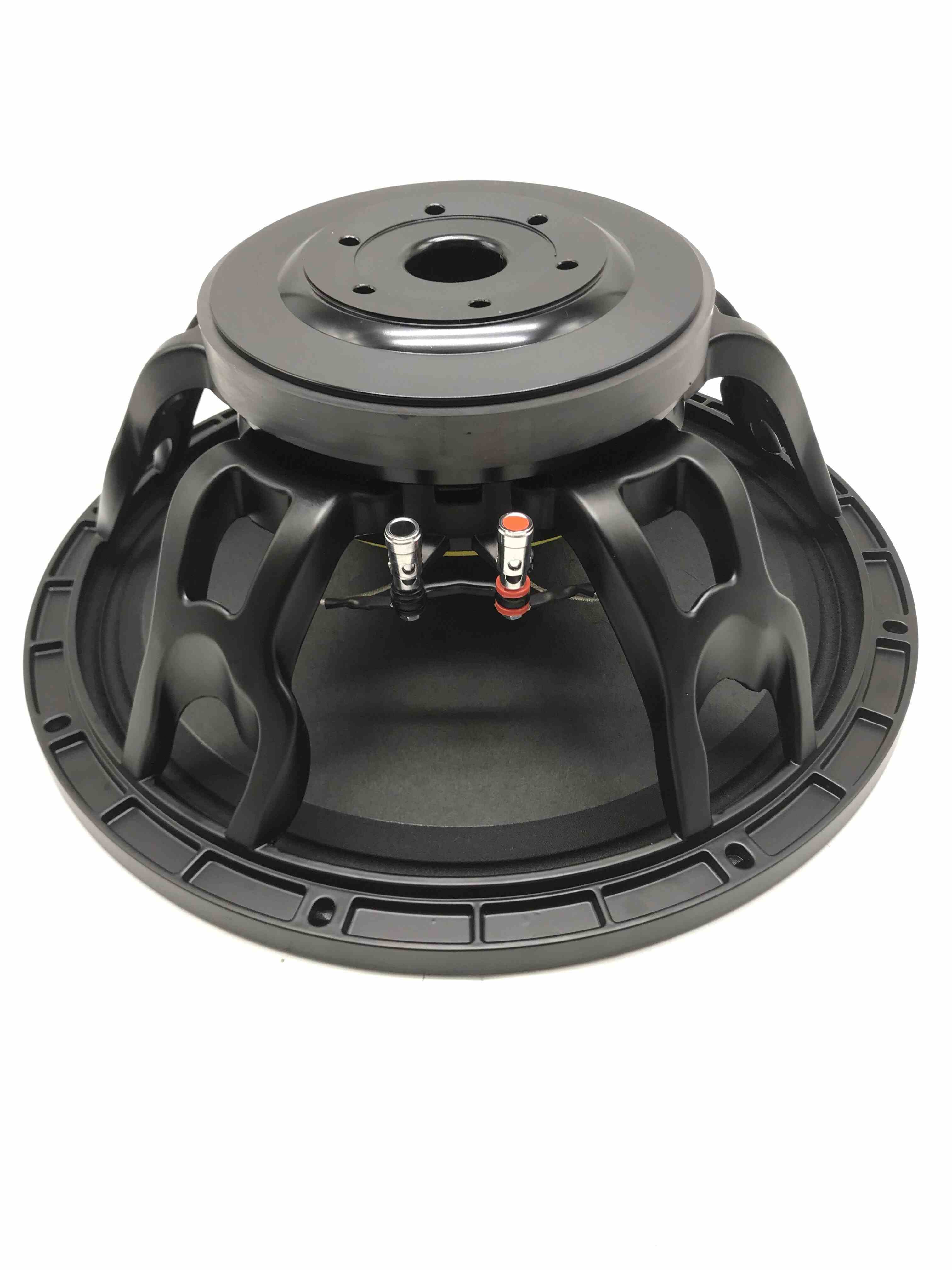

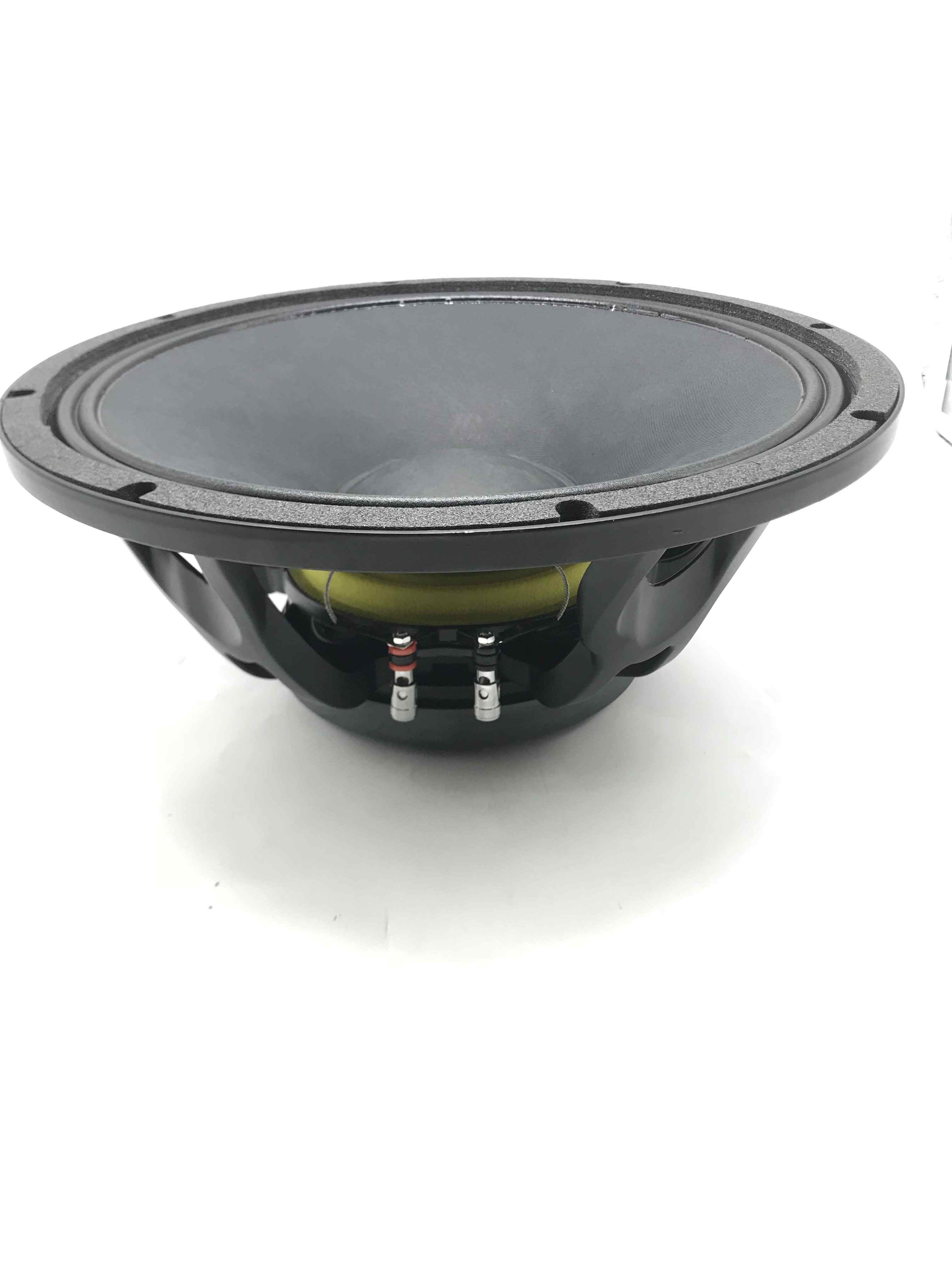

General Specification
|
Nominal diameter |
380 mm/15 inch |
|
The overall diameter |
393 mm |
|
Magnet diameter |
190 mm |
|
Depth |
163 mm |
|
Hole diameter |
355 mm |
|
Install screw hole diameter |
Φ372*8*（Φ7*10） |
|
Net weight |
7.20 kg |
|
Shipping box(1pcs) |
402*402*195 mm |
LF
|
Nominal impedance |
8Ω |
|

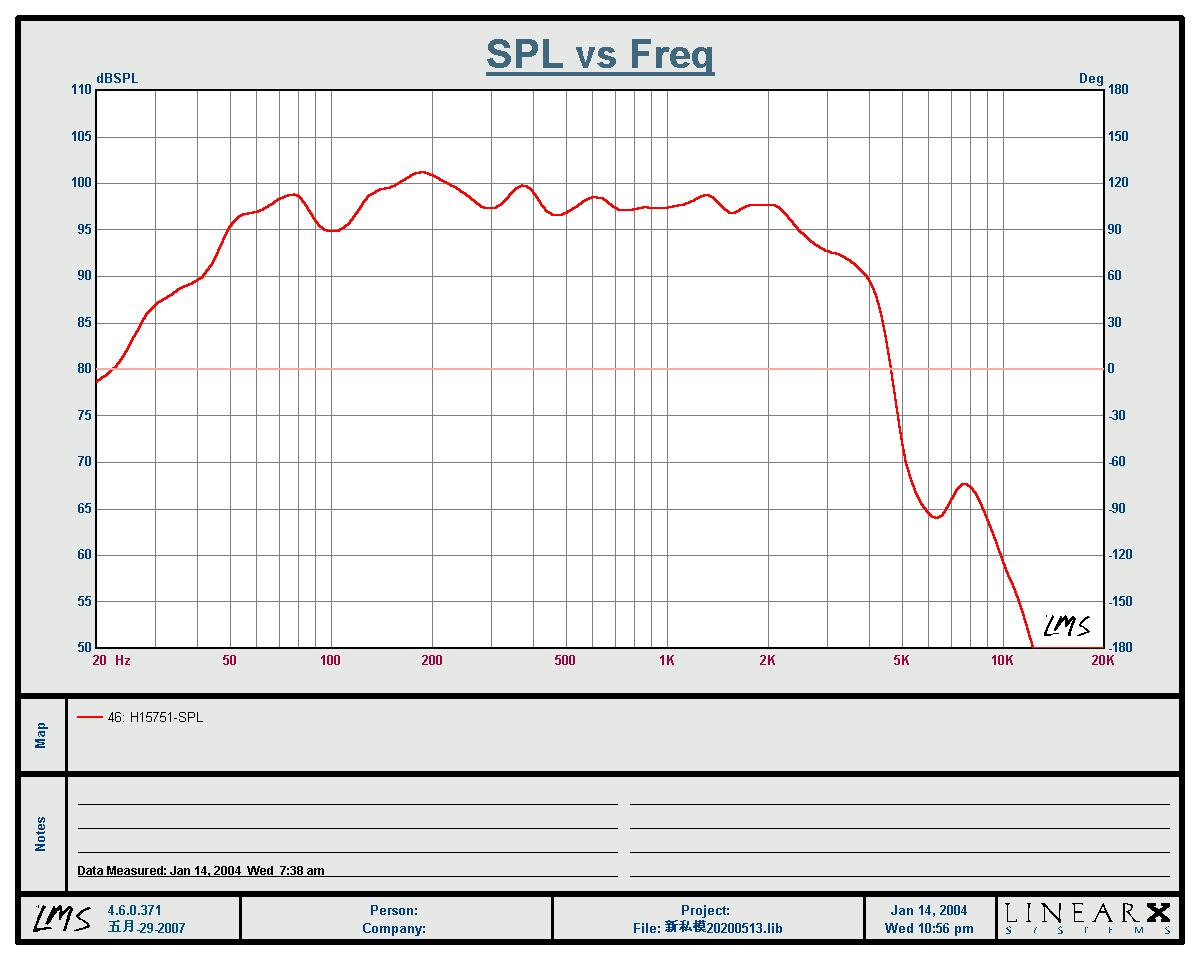

Frequency range |
40-2300 Hz |
|
Sensitivity |
97.5 DB |
|
Nominal power |
500 W |
|
Program power |
1000 W |
|
Voice coil diameter |
75 mm/3 inch |
|
Voice coil material |
Copper |

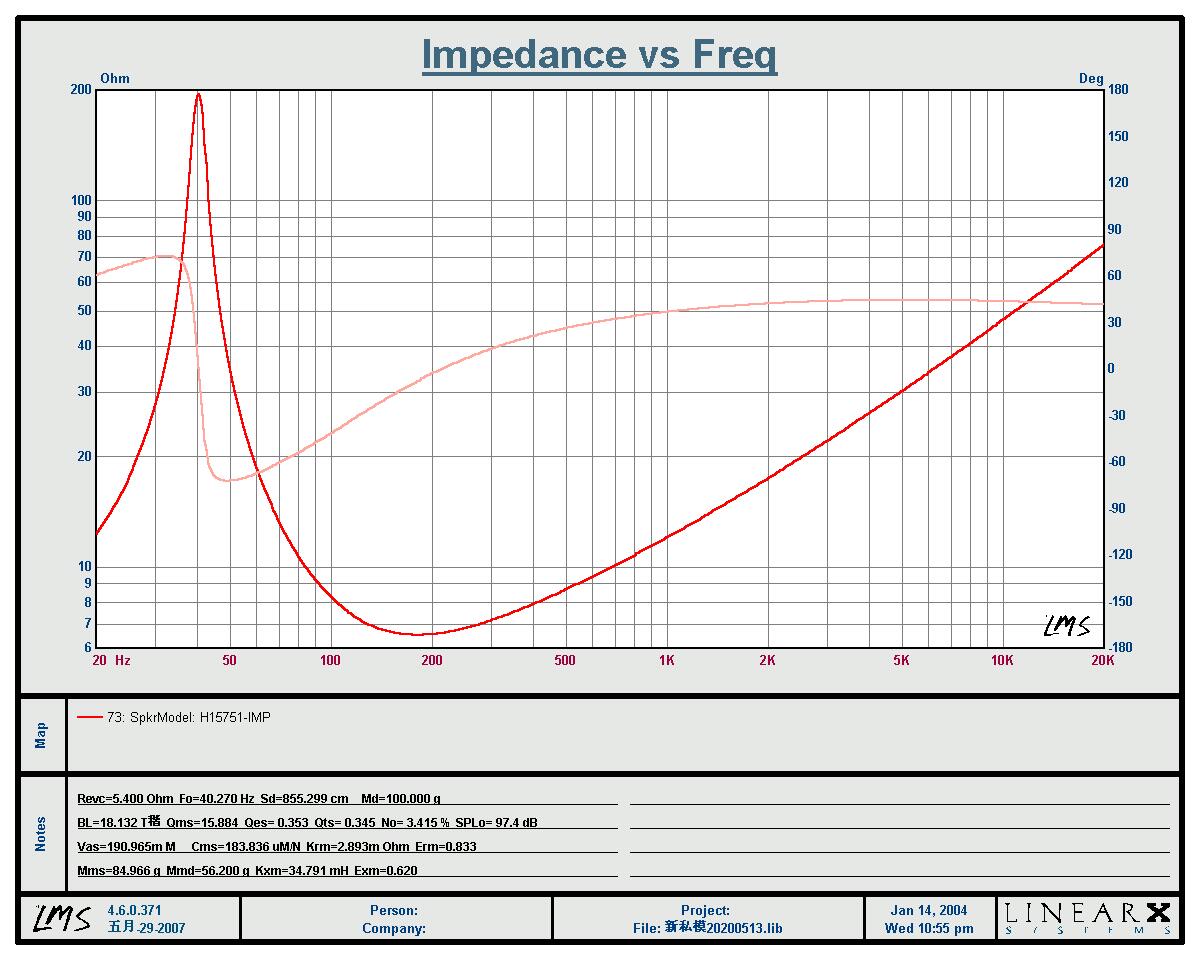

T.S Parameters
|
Fs |
40 Hz |
|
Re |
5.4 Ω |
|
Qes |
0.353 |
|
Qms |
18.503 |
|
Qts |
0.345 |
|
Vas |
99.65 dm³ |
|
Mms |
85.072 g |
|
Sd |
855 cm² |
|
ηo |
3.415 % |
|
Bl |
16.026 T.m |
|
Cms |
183.863 Um/n |
