General Specification
|
Nominal diameter |
300 mm/12 inch |
|
The overall diameter |
318 mm |
|
Magnet diameter |
190 mm |
|
Depth |
148mm |
|
Hole diameter |
286mm |
|
Install screw hole diameter |
Φ300*8*（Φ7*10） |
|
Net weight |
6.8 kg |
|
Shipping box(1pcs) |
317*317*150mm |
LF
|
Nominal impedance |
8Ω |
|
Frequency range |
50-2300 Hz |
|
Sensitivity |
97.0 DB |
|
Nominal power |
400 W |
|
Program power |
800 W |
|
Voice coil diameter |
75 mm/3 inch |
|
Voice coil material |
Copper |

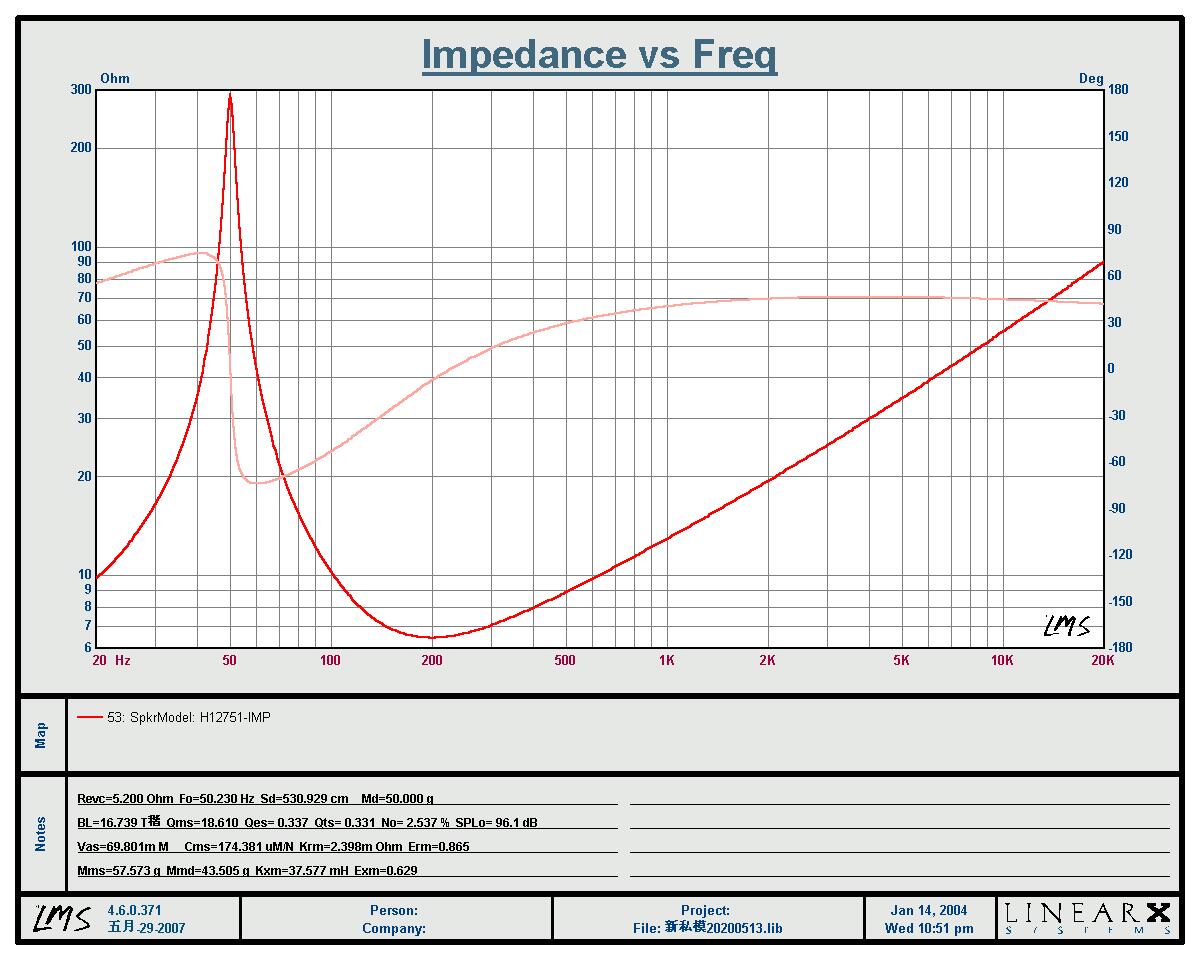

T.S Parameters
|
Fs |
50 Hz |
|
Re |
5.4Ω |
|
Qes |
0.337 |
|
Qms |
16.677 |
|
Qts |
0.331 |
|
Vas |
69.32 dm³ |
|
Mms |
57.072 g |
|
Sd |
530 cm² |
|
ηo |
2.591 % |
|
Bl |
16.389 T.m |
|
Cms |
174.046 Um/n |
